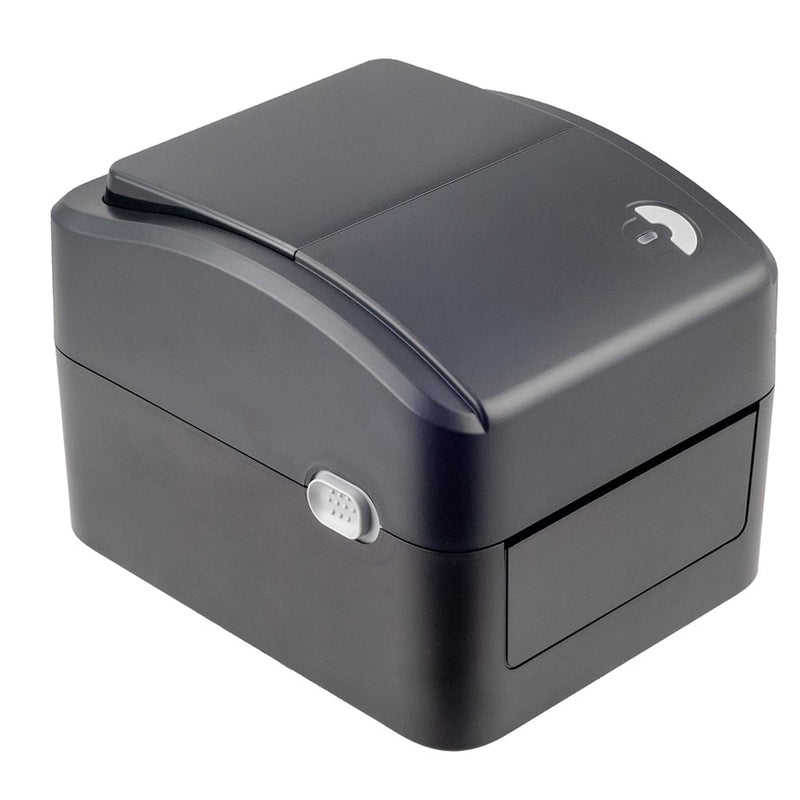

Direct Thermal Shipping Label Barcode Printer TR-422B - USB / Bluetooth / Ethernet

Sale price$213.53

Direct Thermal Shipping Label Barcode Printer TR-422B Black

USB + Bluetooth + Lan

Works with the common 150mm x 100mm logistic shipping labels and more; no ink/TTR ribbon requirement




Resolution: 203 DPI

Print method: Direct Thermal

Print speed: 152mm(6")/s Max.

Max.print width: 108 mm (4.25")

Max.print length: 1778 mm (70")

Media type: Continuous, gap, black mark, fan-fold and punched hole

Media width: 25.4 mm~ 115 mm

Max. media diameter: 110mm

Media core diameter: 25.4~76.2 mm (1"~3")

Processor: 32-bit CPU

Memory: 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max .4Gb

Interface: USB+Bluetooth+Lan

Sensors: 1. Gap sensor  2. Cover opening sensor  3. Black mork sensor

1D barcode: Code 39, Code 93, Code 128UCC, Code 128 subsets A. B, C, Codabar, Interleoved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET China POST, GS1 DataBar, Code11

2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Input: AC 110-240V
Output: DC 24V 2.5A

Dimension: 215mm(L)x178mm(W)x155mm(H)
Weight: 1.31 kg

Driver: Windows / Linux / Mac*
SDK: Windows / ios/ Android

Warranty: one year for the printer
Print head: 30 km or first arrival first


(*The Bluetooth and LAN interfaces are not compatible with Apple Mac computers)




What's in the pack?
- TR-422B Thermal printer
- AC adapter & power supply
- USB cable
- Driver CD


TR-420B User Manual Download


APP Download:


(**When prompted, the initial Bluetooth password is 0000)
