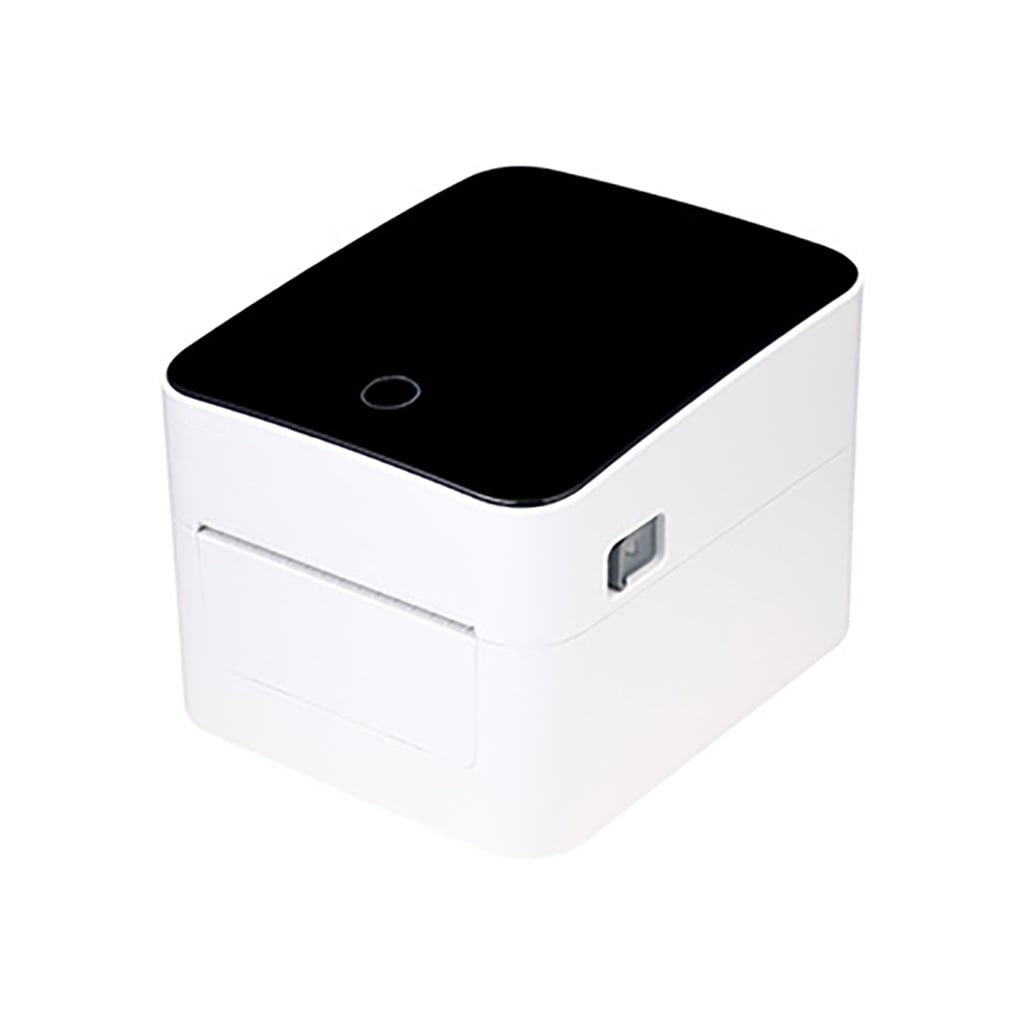

300DPI Direct Thermal Shipping Label Barcode Printer TR-421E
USB + Wi-Fi + Ethernet
Works with common 150mm x 100mm logistic shipping labels and direct thermal labels; no ink/TTR ribbon requirement
Features
Resolution: 300 DPI
Print method: Direct Thermal
Print speed: Up to 102mm/s
Max.print width: 108 mm (4.25")
Max.print length: 889 mm (35")
Media type: Continuous, gap, black mark, fan-fold and Perforated Media
Media width: 30 mm~ 116 mm
Max. media diameter: 127mm
Media core diameter: 25.4~38.1 mm (1"~1.5")
Memory: 32MB SDRAM / 16MB Flash memory
Fonts and Graphics: Font 0 ~ Font 8
1D barcode: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E,EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec
Input: AC 110-240V
Output: DC 24V 2.5A
Dimension: 220mm(D)x178mm(W)x158mm(H)
Weight: 1.3 kg
Printer Warranty: One year
Printhead: 30 km or one year; whichever occurs first.
What's in the pack?
- TR-421E Thermal printer & label roll holder
- AC adapter & power supply
- USB cable
For all drivers and diagnostic tools, please make sure to uncompress/unzip before running, otherwise, the software will be in Chinese.
One click driver installation files:
Diagnostic Tools:
- Windows
- Unfortunately, there is no diagnostic tools for Linux or Mac. Pleas uninstall and re-install the driver for any issues.
